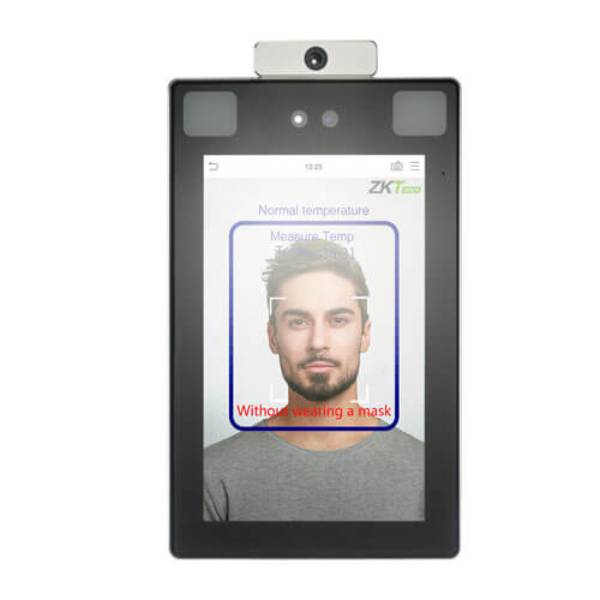

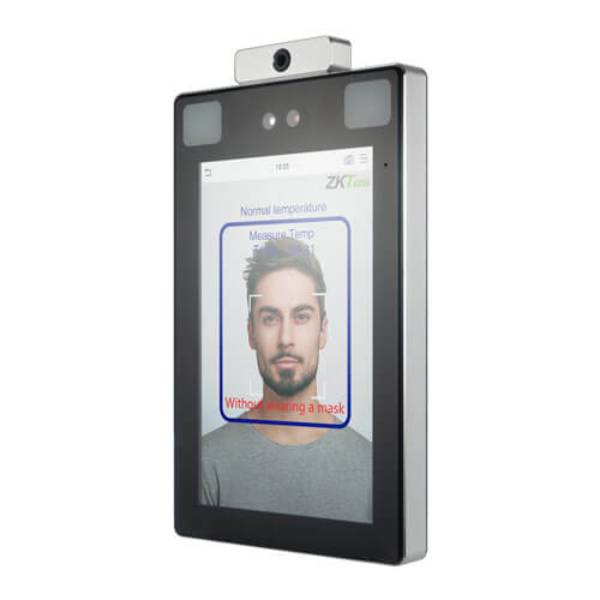

ProFace X [TD]

ProFace X [TD] is a fully upgraded version of the ProFace product line, which is designed to deal with all kinds of scenarios. Powered by the ZKTeco-customized CPU for running the intellectualized engineering facial recognition algorithm and the latest computer vision technology, ProFace X [TD] supports both facial and palm verification with large capacity and rapid recognition speed, boosting the security performance in all aspects.

ProFace X [TD] also helps eliminate hygiene concerns; not only because of the contactless recognition technology it is equipped with, but also because of the new functions namely body temperature detection and masked individual identification.

The facial recognition capability has reached a new height in the biometrics technology industry with a maximum of 50,000 facial templates, recognition speed of less than 0.3 sec per face, and ultimate anti-spoofing ability against almost all types of fake photos and videos attack.

In addition, the 3-in-1 palm recognition (Palm Shape, Palm Print and Palm Vein) is performed in 0.35 sec per hand; the palm data acquired will be compared with a maximum of 5,000 palm templates.

As mentioned above, ProFace X [TD] can assist in reducing the risk of infection and germs spreading during the recent global public health issue as well. The enables fast and accurate body temperature measurement and masked individual identification during facial and palm verification at all access points, especially in hospitals, factories, schools, commercial buildings, airports, stations, and other public areas.

Capacity Faces30,000 (1:N)  / 50,000 (Optional)Palm5,000 (1:N)Users50,000 Transactions1,000,000 / 2,000,000 (Optional)User Photos30,000Event Photos10,000
CompatibilitySecurity Relay Box / Wiegand / RS485 / RS232 Slave Reader with FP / RFID / Barcode / QR-code / ZKBioSecurity Software
Hardware 900MHz Dual-Core Customized AI CPU 512MB RAM / 8G Flash 8″ Hight light (400lux) IPS Touch LCD  2MP WDR Low Light CameraAdjustable Light brightness LEDHi-Fi Voice

High Sensitivity Microphone

Distance Detection SensorReset Button and Tamper Switch
Access Control InterfaceLock Relay Output / Alarm Output / Auxiliary Input / Exit Button / Door Sensor
Special Functions 0.3s Hight Speed Facial Verification

Liveness Detection

HTTPS Communication Encryption (Optional)

Event SnapshotStandard Functions

Access Levels, Groups, Holidays, DST,Duress Mode (Password), Anti-Passback,

Record Query, Tamper Switch Alarm,Custom Wallpaper & Screen Saver

Preventative Measures

Mask detection

Body temperature detection

Temperature Measurement Distance: 30cm~50cm (1ft~1.64ft)

Temperature Measurement Accuracy: ±0.3°C  (±32.54°F)

Temperature Measurement Range: 34°C~45°C (93.2°F~113°F)

CommunicationTCP/IP / Wiegand Input / Output / Wi-Fi (Optional) / RS485 / RS232
Additional InfoFace Algorithm:ZKLiveFace5.8Palm:

FAR ≤0.01%; FRR ≤1%

Working Temperature: 16°C ~ 32°C (60.8°F ~ 89.6°F)

Working Humidity:≤93%Storage Temperature: -40°C ~ 65°C (-40°F ~ 149°F)Storage Humidity:≤93%Net Weight: 853gDimensions (H*L*D): 227*143*26.1mm

Power

Operating Voltage: 12V DC

Current Draw: <2,000mA
