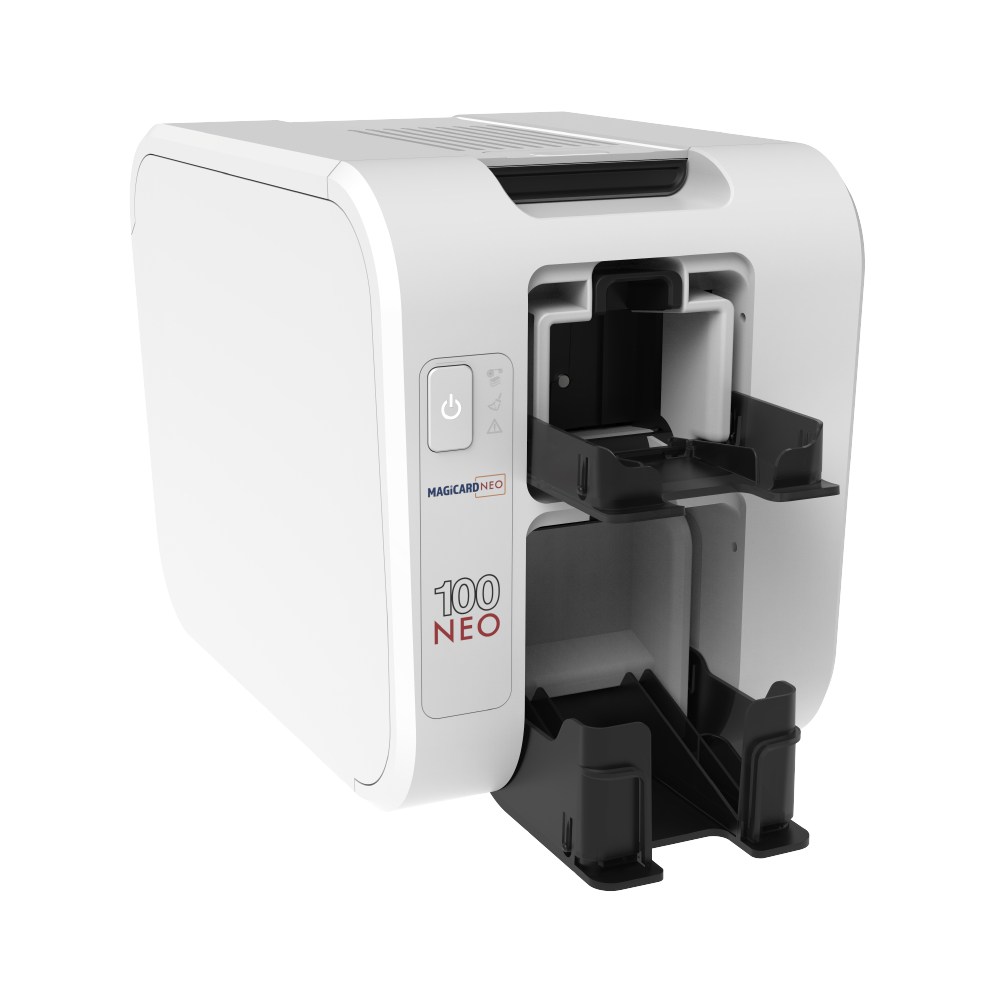

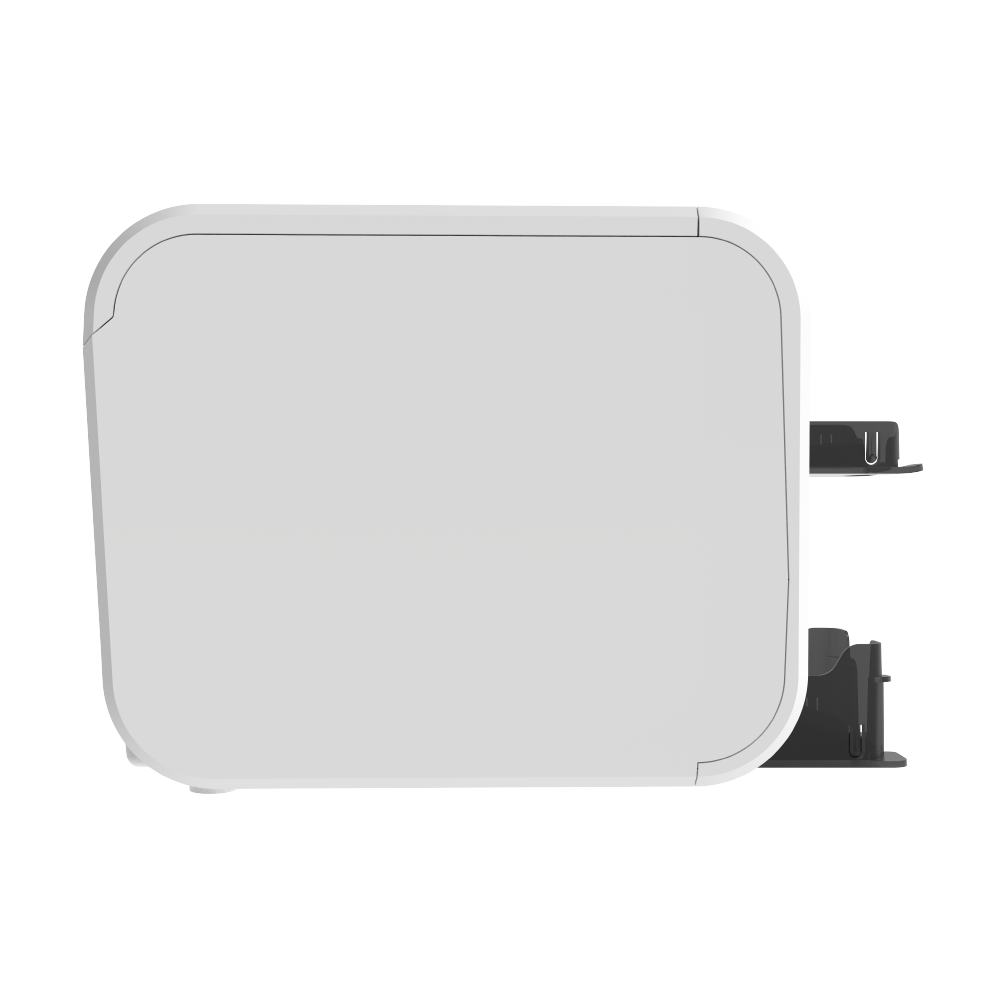

Magicard 100 NEO Single Side ID Card Printer
Print Speed: Up to 200 full color & 766 mono cards per hour
Card capacities: 50 card input 50 card output
Print Technology: Direct to Card Printers
Connectivity : High Speed USB 2.0, USB 3.0 compatible – Type B, 10/100 Ethernet
- Description
- Additional information
- Specs
- Downloads
Description
HoloKote® – built-in visual security
The HoloKote® technology was pioneered by Magicard to apply a secure watermark to each card during the printing process. The 100NEO comes complete with 3 standard designs which are selectable from the printer driver. In addition you can opt to add in an extra layer of security in the form of a HoloPatch® seal. When the HoloKote® watermark is printed on to the seal, the watermark becomes clearly visible under all lighting conditions.
The smallest, fastest, best quality ID card printer in its class
Do not underestimate its tiny frame. Designed from the ground up to be best in class: the powerful 100NEO packs a mighty punch. With a focus on high speed, the highest quality and with the environment a key factor in every aspect of its design and manufacture, the 100NEO has been developed to exceed the expectations of today’s tech-savvy and connected consumer.
Additional information
| BRAND | Magicard |
|---|---|
| MANUFACTURER CODE | 100NEO |
| Brand |
Magicard
|
||
| Model | 100NEO | ||
| Product Type |
Single Side
|
||
| Print Speed | Photo Quality Colour: 23 seconds per card / 157 cards per hour High Speed Quality Colour: 18 seconds per card / 200 cards per hour Monochrome: 4.7 seconds per card / 766 cards per hour | ||
| Display | TFT LCD panel, Size: 4.3 inch, Resolution: 480×272,Resistive touchscreen | ||
| Duplex Printing | Yes | ||
| Connectivity | USB 2.0 Type A Ethernet Interface (100-Base TX/ 10-Base-Tc) |
||
| Print Resolution | 300dpi | ||
| Card capacity | 50 input card feeder/hopper, 50 output card stacker/hopper | ||
| Operating systems | Windows / OS X / Linux | ||
| USB connection | Yes | ||
| Ethernet connection | 10/100 BASE-T Ethernet | ||
| Standard HoloKote with UV | A choice of 10 standard designs | ||
| Custom HoloKote with UV | Ordered separately | ||
| Card sizes | CR80 (ISO/IEC7810) 85.6mm x 54mm / 3.375″ x 2.125″ | ||
| Card thickness | 30 mil (0.76) to 50 mil (1.27) | ||
| Card types | PVC, PET, PC, PVH, ABS | ||
| Printer size | 334mm L x 458mm W x 431mm H (13.14” L x 18.03” W x 16.96” H). | ||
| Printer weight | 2.9kg | ||
