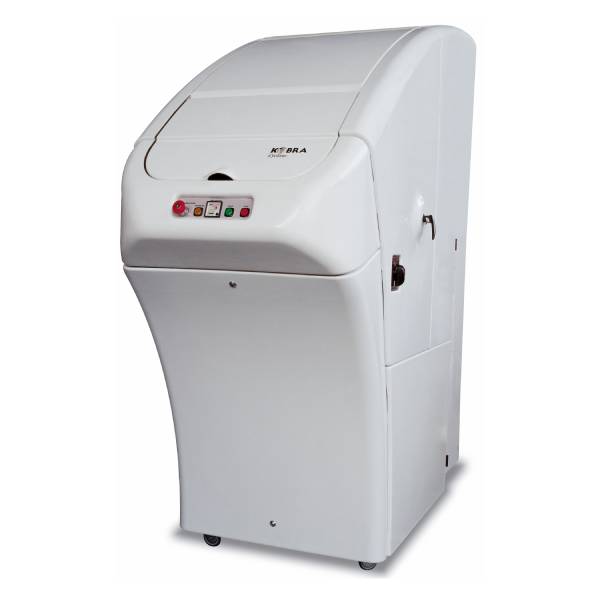

KOBRA CYCLONE Shredder Industrial

0 out of 5

 Multipurpose high volume Industrial Shredder
>  Throat width (WxH):  325×220 mm
>  Shred size:  see Cyclone catalog
>  Standard available security levels: P-2, P-4, P-5, P-6
>  Paper capacity:  500 sheets A4/70gr at a time
>  Shredding Output: up to 400/420 Kg per hour
>  Noise level:  75-85 dba
>  Waste bag volume:  400 liters

New Project
SKU: KU1C00 Categories: ,

Description

Main features

MULTIPURPOSE HIGH VOLUME INDUSTRIAL SHREDDER

Industrial shredder designed for large quantities of material (up to 420kg per hour): paper (500 sheets at a time), credit cards (45.000 per hour), CDs / DVDs / Blu-ray (15.000 per hour), Floppy-Disks (7.000 per hour), cardboard, carton boxes, aluminum cans, and plastic bottles. The size of the particles (Security Level) can be chosen when ordering the machine and it will always be possible to change the Security Level, choosing between the 5 different available ones, any time after installation of the unit with a simple operation to adapt to any shredding need. Shredding capacity of 500 sheets at a time remains unchanged with any Security Level installed in the machine. Kobra Cyclone is equipped with an integrated vacuum system specifically designed to provide the operator with a clean and dust-free shredding environment. Kobra Cyclone is built with a double insulated shredding chamber and special plastic outer housing enclosure for low noise operation. It doesn’t require any oiling of cutting knives or special maintenance. This makes it easy to use for everybody at the office. Kobra Cyclone complies with the shredding standards of ASIO – Australian Security Intelligence Organisation – T4 Protective Security. Security level 005 is NATO approved. Security Level 006 meets the latest shredding standards issued by the National Security Agency: NSA/CSS Specification 02-02 for paper destruction and NSA/CSS Specification 04-02 for Optical Media Destruction.

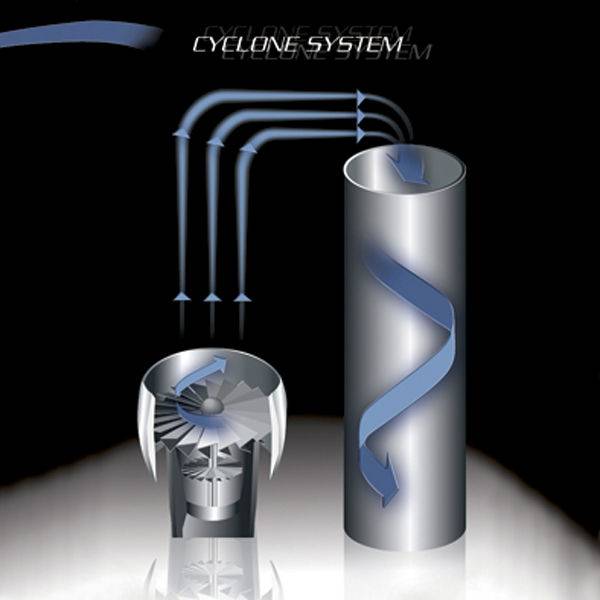

Unique Technology: Kobra Cyclone it’s equipped with a turbine generating a high-pressure air flow and sets of high-speed rotating blades. By making the air stream spin, particles are subjected to centrifugal forces and deposited from the airflow into the disposal bag
High-efficiency motor: maximum electrical saving per year
Continuous Duty: 24-hour continuous shredding operations. Motor Thermal protection. No overheating

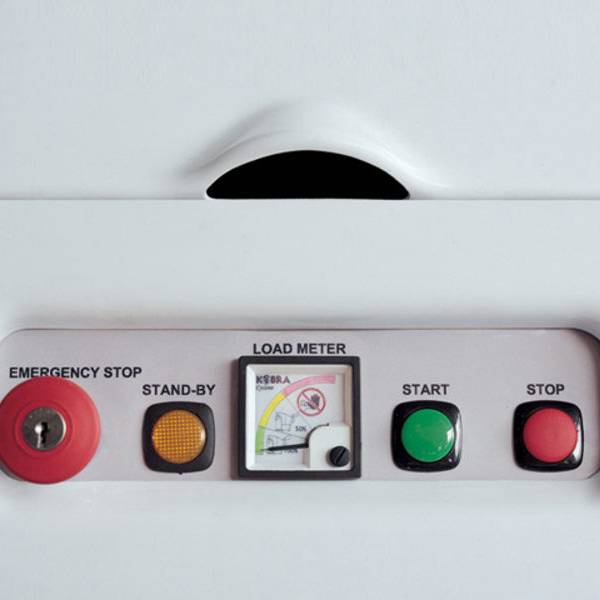

Control Panel: just press the start button, throw the material into the large entry opening and leave, Kobra Cyclone will automatically shred everything and go into standby mode when shredding is completed; a Load Meter positioned in the center of the control panel measures the actual load on the turbine and on the rotating blades and shows the operator the availability of the shredding capacity at any time during intensive and continuous shredding jobs, for full shredding output and power of the Kobra Cyclone
No Maintenance: No oiling of cutting knives. No lubrication. Easy to use without any maintenance operation

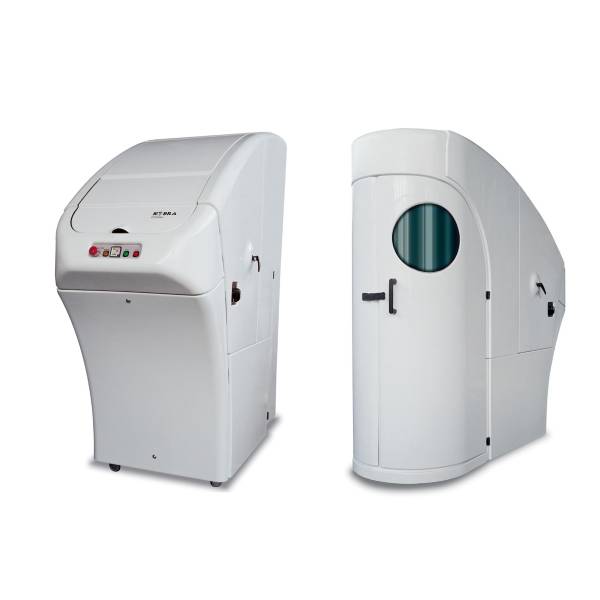

Rear Window for easy checking of waste bag level
Double Insulated shredding chamber and special plastic outer housing enclosure for low noise operation
Integrated Vacuum system specifically designed to provide the operator with a clean and dust-free shredding environment

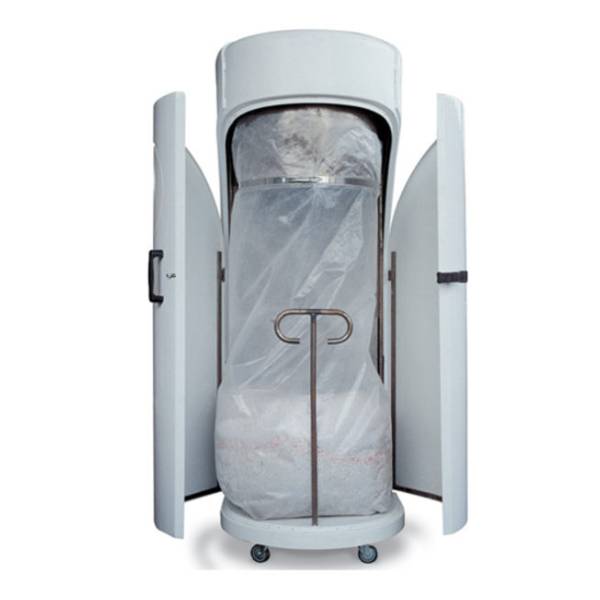

Built-in-trolley for easy removal of a waste bag
START & STOP Manual Start/ Automatic Stop with Stand-by function
AUTOMATIC STOP for a bag full with light signal

Optional available:
– Kobra Compactor C-500 – compresses and reduces the volume of the shredded paper by 4 to 5 times
– 5 Screen for 5 different security levels:
002 similar to security level P-2 O-2 T-2 E-2
003 similar to security level P-2 O-2 T-2 E-2
004 similar to security level P-4 O-2 T-3 E-2
005 similar to security level P-5/P-6 O-3 T-4 E-3 F-1 for Microfiche only
006 similar to security level P-7 O-5 T-5 E-4 F-3 for Microfiche only

Consumable materials:
– plastic waste bags 10 pcs
– Vacuum system filter 10 bags
– Sleeve Junction Cyclone-Compactor, 10 pcs

Certification marks: CB – CE – CSA


Tecnologies

CONTINUOUS DUTY
24-hour continuous duty operation without overheating
and duty cycles
EXCLUSIVE DESTRUCTION SYSTEM THROUGH TURBINE
in combination with high speed rotating blades
ILLUMINATED OPTICAL INDICATORS
clearly show the current status of the machine

Additional information

BRAND

KOBRA

Sheets

500

Shred Style

Industrial

Can Shred

Paper Clip / Staples / Credit Card / Junkmail / CD

Model Cyclone
Shred Size see Cyclone catalog
Sheet Capacity 500 sheets A4/70gr at a time
Shredder Speed up to 400/420 Kg per hour (theoretical output)
Noise level 75-85 dba (depending on the local voltage and in idle operation)
Shred Type CrossCut
Security Level 5 different available Security Levels similar to P-2, P-4, P-5/P-6, P-7
Throat width 325×220 mm
Can Shred Paper, CD/DVD/Blue Ray, Floppy Disk, Credit Card, USB pen drive, folders, Card Board
Dimensions (WxDxH) 80x212x210 cm
Bin Size 400 liters
Power 6,0 kW high-efficiency motor
Voltage 380/400 V
Weight 440 Kg
