Aver F70W

0 out of 5

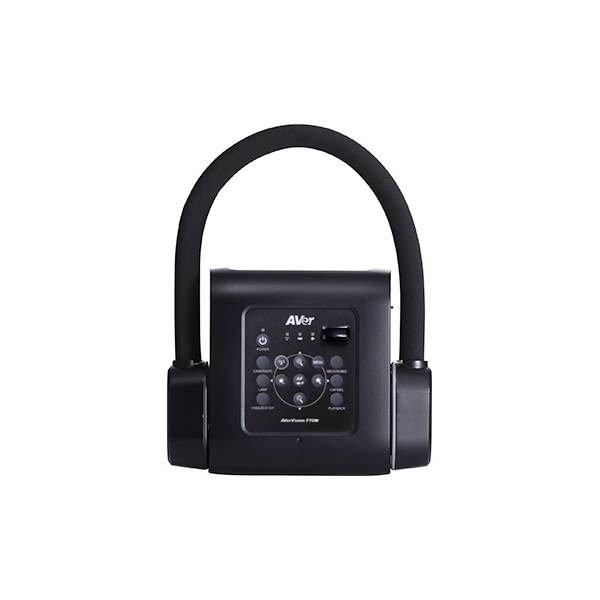

AVerVision F70W
High-quality image sensor, 8X zoom capabilities, and image streaming via HDMI

Combining absolute flexibility and mobility, the F70W supports both wired and wireless transmission, offering you a range of options to stream live images. With F70W’s wireless capability, you are able to present live images/videos of anything from anywhere in the classroom, allowing teachers and students to interact at levels never experienced before. What’s more, AVer’s innovative learning software complements the F70W and gives you an array of unique teaching tools to maximize the effectiveness of any lesson.
*Available in select markets only

Product is out of stock

Please enter a valid email!

SKU: AM1F70W Categories: ,


Jack of All Trades

Consider this document camera wireless, HDMI, and USB friendly! Whether you prefer teaching next to a big screen or simply at your desk, the varying features give you more connectivity options to suit your needs.

Wi-Fi and Miracast Ready!

Connect the F70W on Wi-Fi or through Miracast! Video cast from devices directly with point-to-point Miracast, or connect on the 2.4 or 5 GHz wireless bands. The F70W document camera’s wireless option also gives you free range to move in the classroom with a 6.5-hour onboard battery.

Engaging Content

Showcase vivid details in your presentation and create a captivating lesson with the document camera’s 1080p resolution at 30 fps and 12x zoom features.

Move It, Twist It, or Bend It!

Planning a flipped classroom lesson? Turn learning upside down with the F70W document camera’s flexible design and turn everyday lessons into fun learning experiences.

Enhance Lessons

Advance your 1:1 classroom engagement with our exclusive Sphere2 & ClassSend Software Suite, which allows you to create, upload, and share your material via sites such as YouTube™, Dropbox™, Google Drive, etc.

Additional information



Image Sensor

1/2.7″ CMOS color image sensor
Output  Resolution

Full HD1080p (1920 x 1080)
TV Lines

1000 (max.)
Frame Rate

30fps (max.)

8X total zoom

Auto / manual
Shooting Area

Larger than A4 landscape (338 x 251 mm)
Image streaming

Supports live streaming to a tablet, PC or Mac via wireless access point
Wireless networks

Supports 2.4GHz / 5GHz 802.11a/b/g/n
Effective range

45 ft (F70W to wireless access point)
Image Rotation

Electronic rotation 0° / 90° / 180° / 270°
Internal Storage

240 images (max.)
External Storage

SDHC (32GB max.)



Yes (to SDHC card)
Image Effects

Color / B&W / Negative / Freeze
Image Adjustments (White Balance / Exposure)

Auto / Manual
Presentation Tools

Yes (Spotlight & Visor functions)
Split Screen

Yes (Vertical & horizontal)

Display Mode

Sharp / Graphics / Motion / Microscope
Capture Mode

Single / Continuous
User Profiles

Up to 3

Flicker Filter Control

Yes (50/60Hz)
Light Source

Embedded LED lamp

1 in; 1 out (pass through)
Mini USB 2.0 Port

Yes (PC camera / built-in image download)
USB 2.0 Port

Audio Output

Dimensions (W x H x D)

Operating: 200 x 525 x 380 mm

Folded: 230 x 73 x 305 mm

Net Weight

2.6kg (5.64lbs)
Power Source

AC 100V~240V, 50/60Hz
Power Supply

DC 12V power adapter (2A)
Battery Type

Built in 6-cell
Battery Power

7.2V/ 6600 mAh
Battery Life

Approx. 8 hours
A+ Suite OS compatibility

Windows® OS

Windows® 7 (32/64-bit), Windows® 8 (32/64-bit), Windows® 10 (32/64-bit)

Mac OS

Mac OS X v10.10 Yosemite,

Mac OS X v10.11 El Capitan

Sphere2 app compatibility

Supported OS

iOS: iOS v8, v9 and later

Android: Android v4.1 (Jellybean) and later
