| Package Contents |
|
Communications |
|

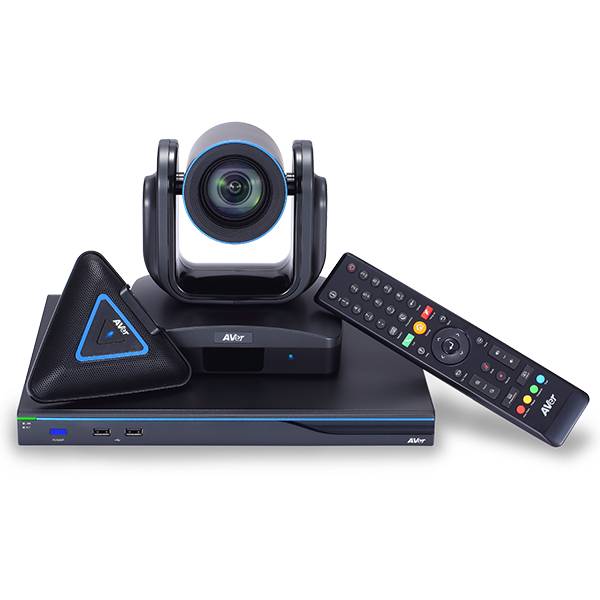

- Camera/New eCam PTZ:
|
|
|
|
|
|
- Main system unit (codec)
- The New eCam PTZ camera
- EVC microphone array
- IR remote control
- Power supply
- Cables
- Warranty card
- Quick guide
|
|
- H.323, SIP standards, SIP TLS
- 64Kbps~4Mbps
- RJ45 network LAN (10/100/1000)
- Manual bandwidth settings
|
|
- Pan/Tilt/Zoom camera
- 2-megapixel CMOS sensor
- 18X total zoom
- +/-130° pan; +90°/-25° tilt
- Field of view (H): 72°
- Field of view (V): 43°
- Field of view (Diagonal): 82°
|
- People Video Resolutions
|
|
Content Video Resolutions |
|
Video Standards |
|
|
|
|
|
- HD1080p (1920 x 1080)
- HD720p (1280 x 720)
- 480p (848 x 480)
- 4CIF (704 x 576)
- CIF (352 x 288)
- SIF (352 x 240)
- All resolutions at 30fps
|
|
- Supported resolutions:
- HD1080p (1920 x 1080)
- WXGA+ (1680 x 1050)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD720p (1280 x 720)
- XGA (1024 x 768)
- SVGA (800 x 600)
- D1 (720 x 480)
- VGA (640 x 480)
- Output resolutions:
- HD1080p (1920 x 1080) up to 30fps
|
|
- H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261
- H.239 dual video streams
- BFCP content sharing
|
- Video Features
|
|
- Video Inputs
|
|
- Video Outputs
|
|
|
|
|
|
|
|
|
- EVC new eCam camera
- VGA
- DVI (HDMI)
|
|
|
- Audio Standards
|
|
- Audio Features
|
|
- Audio Inputs
|
|
|
|
|
|
|
|
- G.711, G.722, G.728, G.722.1, G.722.1C, AAC-LD
|
|
- Automatic gain control (AGC)
- Advanced noise reduction
- Acoustic echo cancellation (AEC)
|
|
- EVC microphone daisy chain up to 4
- DVI (HDMI)
- Line-in (3.5 mm)
|
- Audio Outputs
|
|
- Other Supported Standards
|
|
- User Interface
|
|
|
|
|
|
- 10/100/1000Mbps
- NAT/firewall traversal
- High Efficiency Lost Packet Recovery (HELPeR™)
- API support via Telnet
- Wake-on-LAN (WOL) support
- IPv4 and IPv6 support
- Network Test
- QoS
|
|
- AES (Advanced Encryption Standard) function (128-bit)
- Password protection for system settings
- Password protection for remote system management
|
|
- Remote management
- Live to monitor
- Firmware update
- Phonebook download/upload/edit
- Restore system settings
- Export call history
|
| Network |
|
Security |
|
- Web Management Tool
|
|
|
|
|
|
- 10/100/1000Mbps
- NAT/firewall traversal
- High Efficiency Lost Packet Recovery (HELPeR™)
- API support via Telnet
- Wake-on-LAN (WOL) support
- IPv4 and IPv6 support
- Network Test
- QoS
|
|
- AES (Advanced Encryption Standard) function (128-bit)
- Password protection for system settings
- Password protection for remote system management
|
|
- Remote management
- Live monitoring
- Firmware update
- Phonebook download/upload/edit
- Restore system settings
- Export call history
|
- Value-Added Features
|
|
- Power Supply
|
|
- Environmental Data
|
|
|
|
|
|
- Meeting recording
- In meeting and offline recording
- save directly to USB flash drive
- supports screen re-layout during playback
- playback and file conversion via VCPlayer software (.mov/.mp4 format)
- EZmeetup software/App
- 30-day for free trial
- Connect with H.264 video codec
- Receive resolution up to full HD 1080p 30fps
- Transmit resolution up to full HD 1080p 30fps
- Compatible with firmware later than 10.06
- Support content sharing, capture and recording
- EZDraw App
- Compatible with EVC multipoint systems
- Import .JPG, .PNG, .GIF, and .BMP files
- Export .PNG files
- Maximum of 10 tablets can be connected
- Speed dialing via hot keys (10 sets)
- Camera presets (100 positions)
- Network Time Protocol (NTP)
- License upgrade to 6, 8, 10 points
- ScreenShare support
- VCLink support
- SnapShot
- Group Calling
- Supports SIP voice calls
|
|
- AC 100V~240V, 50/60Hz
- Consumption: EIAJ 12V, 5A
|
|
- Operation temperature: 0°C~40°C
- Operation humidity: 20%~80%
- Storage temperature: -20°C~60°C
- Storage humidity: 20%~80%
|
| Physical Characteristics |
|
Mobility software – EZMeetup (optional) |
|
|
|
|
|
|
|
- Package dimensions: 376 x 300 x 243 mm
- Package weight: 6.99kg (15.41lbs)
- Main system (codec): 320 x 262.7 x 37.2 mm
- New eCam PTZ camera: 180 x 144 x 184 mm
- EVC microphone array: 131.9 x 118.6 x 25.5 mm
|
|
- Supported devices:
- Windows® and Mac OS®
- iOS, Android phones and tablets
- Windows 8 tablets
- Other features:
- Connect with H.264 and H.263+
- Receive resolution up to full HD 1080p 30fps
- Transmit resolution up to full HD 1080p 30fps
- Compatible with EVC300/EVC900
- Support content sharing
|
|
|
